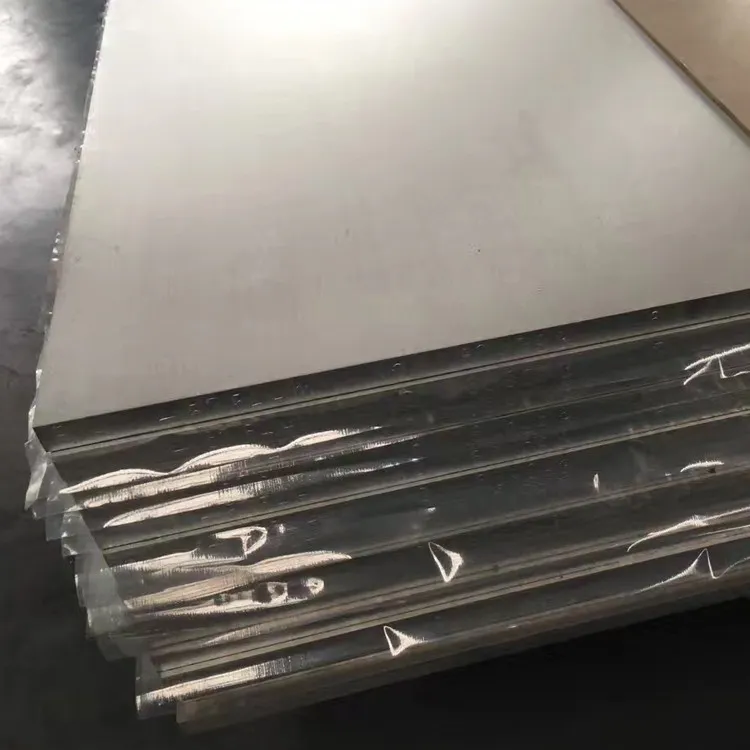

5052 Aluminum Plate

5052 aluminum plate is the most widely used rust proof aluminum. This alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, good plasticity during semi cold work hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, and can be polished.

Send Inquiry

1. Material Composition & Manufacturing Process

5052 aluminum alloy (ASTM B209, AMS 4002) features a magnesium-chromium alloying system optimized for corrosion resistance and formability:

Alloy Chemistry:

Magnesium (Mg): 2.2-2.8% (solution strengthening)

Chromium (Cr): 0.15-0.35% (corrosion resistance)

Iron (Fe): ≤0.40% max

Silicon (Si): ≤0.25% max

Copper (Cu): ≤0.10% max

Base Material:

Aluminum (Al): ≥96.7% (balance)

Trace Elements:

Zinc (Zn): ≤0.10% max

Manganese (Mn): ≤0.10% max

Titanium (Ti): ≤0.15% max

Advanced Manufacturing Process:

Continuous Casting: 680-720°C molten metal temperature

Hot Rolling: Initial reduction at 450-510°C

Cold Rolling: Final gauge reduction (30-80% reduction)

Stabilization Treatment:

H32: Slightly strain hardened + stabilized

H34: Medium strain hardened + stabilized

H38: Hard strain hardened + stabilized

Surface Treatment: Mill finish, brushed or embossed options

Certified to ASME SB209 and EN 485 standards with full traceability documentation.

2. Mechanical Properties by Temper State

Property	O Temper	H32 Temper	H34 Temper	Test Standard
Ultimate Tensile Strength	170-215 MPa	230-265 MPa	260-290 MPa	ASTM B557
Yield Strength (Rp0.2)	65-105 MPa	195-215 MPa	220-240 MPa	ASTM B557
Elongation (%)	18-25%	8-14%	6-10%	ASTM B557
Shear Strength	125-145 MPa	155-175 MPa	170-190 MPa	ASTM B831
Bearing Strength	310-350 MPa	440-480 MPa	480-520 MPa	ASTM E238
Fatigue Strength (10⁷)	90-115 MPa	110-135 MPa	120-145 MPa	ASTM E466
Hardness (Brinell)	47-52 HB	60-68 HB	68-75 HB	ASTM E10
Impact Toughness	25-30 J	20-24 J	15-20 J	ASTM E23

3. Heat Treatment & Microstructure Control

Strain Hardening Mechanism:

Cold rolling reduction determines final properties:

H32: 8-15% reduction

H34: 15-22% reduction

H38: 30-40% reduction

Stabilization Treatment: 120-160°C for 1-3 hours

Microstructural Characteristics:

Grain Size: ASTM 5-6 (40-60μm)

Dispersoid Phases:

Al₃Mg₂ particles (2-5nm)

Al₇Cr precipitates (10-30nm)

Dislocation Density:

O temper: 1×10⁸/cm²

H38 temper: 6×10¹⁰/cm²

Texture Components: Strong Brass {110}<112>

Recrystallization Fraction: Fully recrystallized in O temper

4. Dimensional Specifications for Plate

Parameter	Standard Range	Precision Tolerance	Special Capabilities
Thickness	0.5-150 mm	±1-3% (varies by gauge)	Up to 200 mm
Width	1000-3000 mm	±5-15 mm	Up to 4500 mm
Length	2000-12000 mm	±10-30 mm	Up to 18,000 mm
Flatness	5-15 mm/m	1-3 mm/m (precision)	-
Surface Roughness	0.4-1.2 μm Ra	0.2-0.4 μm Ra (polished)	Mirror finish
Edge Condition	Mill edge	Squared or beveled	CNC edge profiling

Forming Capabilities:

Stretch Forming: Up to 30% elongation

Deep Drawing: LDR of 1.8-2.2

Hydroforming: Complex shapes

Brake Forming: Minimum bend radius 1t (O temper)

Roll Forming: Continuous profiles

5. Corrosion Resistance Performance

Environment	Performance Rating	Corrosion Rate	Protection Methods
Seawater Immersion	Excellent	<0.002 mm/year	Alodine 1200S conversion
Coastal Atmosphere	Excellent	0.001-0.003 mm/year	Paint systems
Chemical Exposure	Good	0.01-0.1 mm/year	PVDF coating
Automotive Salt Spray	Excellent	ASTM B117 Rating A	E-coat pretreatment
Stress Corrosion	Excellent	SCC threshold >50MPa	-

Surface Treatment Options:

Mill Finish: Standard protective film

Anodizing: Decorative or hard coat

Powder Coating: Multiple color options

PVDF Coating: Superior weather resistance

Chromate Conversion: Alodine 600 series

Embossed Surfaces: Diamond or linear patterns

6. Machining & Fabrication Properties

Operation	Tool Material	Recommended Parameters	Quality Output
Waterjet Cutting	High-pressure	3500-4000 bar, 8-15 mm/min	±0.1-0.3 mm
Laser Cutting	Fiber laser	3-6 kW power, 5-20 m/min	Ra 3-8 μm
Routing	Carbide tools	3000-5000 RPM, 1500-3000 mm/min	Burr-free edges
Punching	HSS tooling	60-100 strokes/min	IT12 tolerance
Blanking	D2 tool steel	Clearance 8-12% material thick	Minimum 1.5t radius

Fabrication Advantages:

Weldability: Excellent without preheat

Shearability: Low tool wear rate

Formability: High ductility in annealed state

Joinability: Compatible with all standard methods

Polishability: Excellent surface finishing characteristics

7. Welding & Joining Technologies

Optimal Welding Processes:

Gas Metal Arc Welding (GMAW):

Wire: ER5356 or ER5556

Shielding Gas: Argon or Ar+25%He

Tungsten Inert Gas (GTAW):

Electrode: EWTh-2 (2% thorium)

Gas Flow: 12-18 L/min

Resistance Spot Welding:

Pressure: 2.5-4.0 kN

Time: 0.2-0.5 sec

Specialized Joining Methods:

Adhesive Bonding:

Epoxy structural: 15-25 MPa

Methacrylate: 12-20 MPa

Mechanical Fastening:

Self-piercing rivets

Blind rivets

Clinching technology

Brazing Systems:

Aluminum-silicon filler metals

Furnace or torch brazing

8. Physical Properties for Engineering Design

Property	Value	Design Significance
Density	2.68 g/cm³	Lightweight advantage
Young's Modulus	70.3 GPa	Stiffness in design
Poisson's Ratio	0.33	Stress distribution
CTE (20-100°C)	23.8 μm/m·°C	Thermal expansion
Thermal Conductivity	138 W/m·K	Heat transfer capability
Electrical Conductivity	35% IACS	Electrical applications
Melting Range	605-650°C	Processing safety margin
Magnetic Permeability	<1.01	Electromagnetic neutrality

9. Quality Control & Certification

Comprehensive Testing Protocol:

Chemical Analysis: Optical emission spectroscopy

Mechanical Testing: Batch/lot certification

Corrosion Testing:

ASTM G67 for intergranular corrosion

ASTM G85 for salt spray

Non-Destructive Testing:

Ultrasonic scanning (ASTM B594)

Eddy current examination

Surface Quality Inspection:

Visual per ASTM B209

Profilometer measurement

Certification & Compliance:

ISO 9001:2015 Quality System

AS9100 Aerospace Certification

NADCAP Special Processing

RoHS & REACH Compliance

Marine Classification: ABS, DNV, LR

FDA Compliance for food contact

10. Industrial Applications & Handling

Primary Application Sectors:

Marine components and superstructures

Transportation flooring and panels

Architectural cladding systems

Chemical processing equipment

Food & beverage processing

Electrical enclosures

HVAC ductwork

Automotive body panels

Handling & Storage Protocols:

Protective film: PE or PET coating

Storage orientation: Vertical or flat

Stacking: Wood separators every layer

Lifting: Wide belt slings (>150mm)

Environmental control: <70% humidity

Packaging: Desiccant loaded systems

Transportation Requirements:

Weatherproof covering

Edge protection systems

Non-metallic blocking

Cradle supports for plates

ISO container specifications
